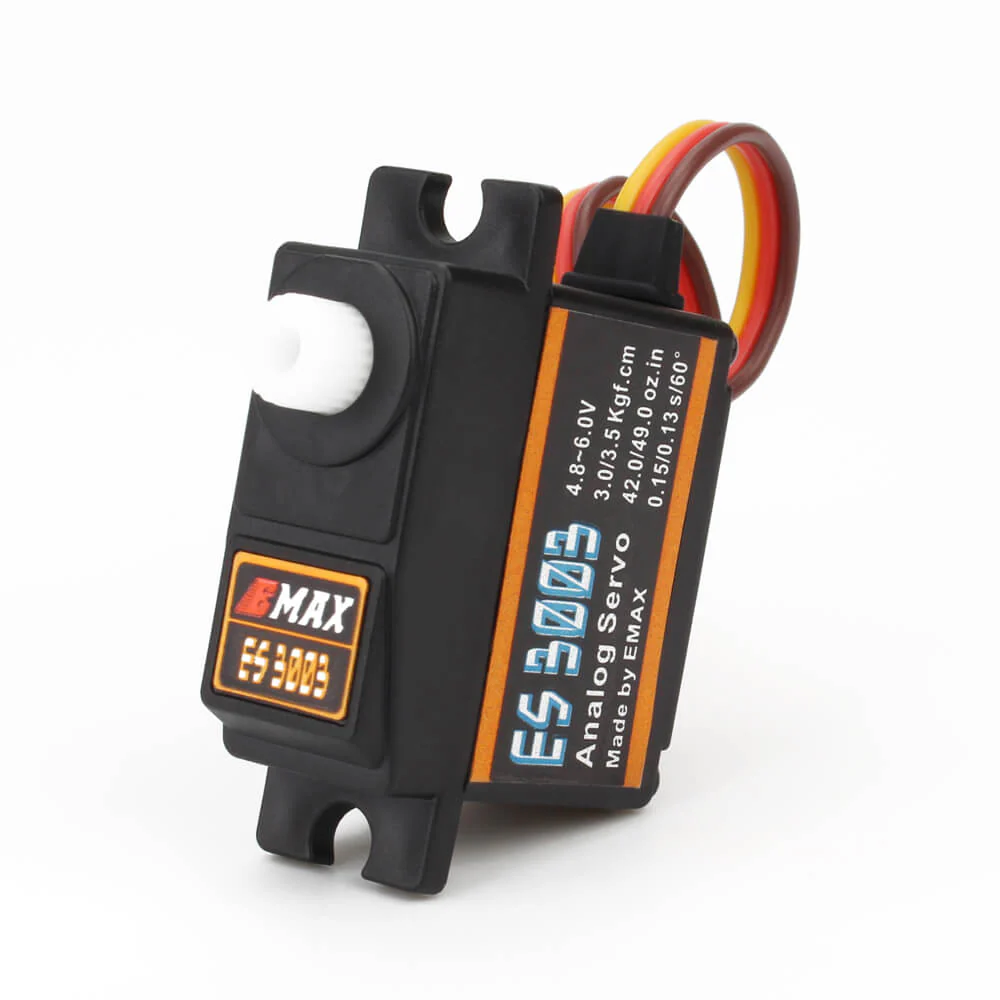

EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo For RC Airplane
EMAX ES3003 17g 3.5kg 0.13sec Plastic Gear Analog Servo For RC Airplane ES3103 upgrade

Specifications:
| Brand Name | EMAX | |
| Item Name | ES3003 | |
| Operating Voltage | 4.8V - 6.0V | |
| STD Direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | |
| Stall Torque | 4.8V | 3kg.cm Max |
| Operating Speed | 4.8V | 0.15 sec/60° at no load |
| Stall Torque | 6.0V | 3.5kg.cm Max |
| Operating Speed | 6.0V | 0.13 sec/60° at no load |
| Size | 28.45x13.00x31.10mm | |
| Weight | 17g | |
| Plug Available | FUT;JR | |
| Flower Head | 23T | |
| Maximum Travel | 145°±10° (700-2300μ sec) | |
| Others | Bearing; Plastic; Analog | |

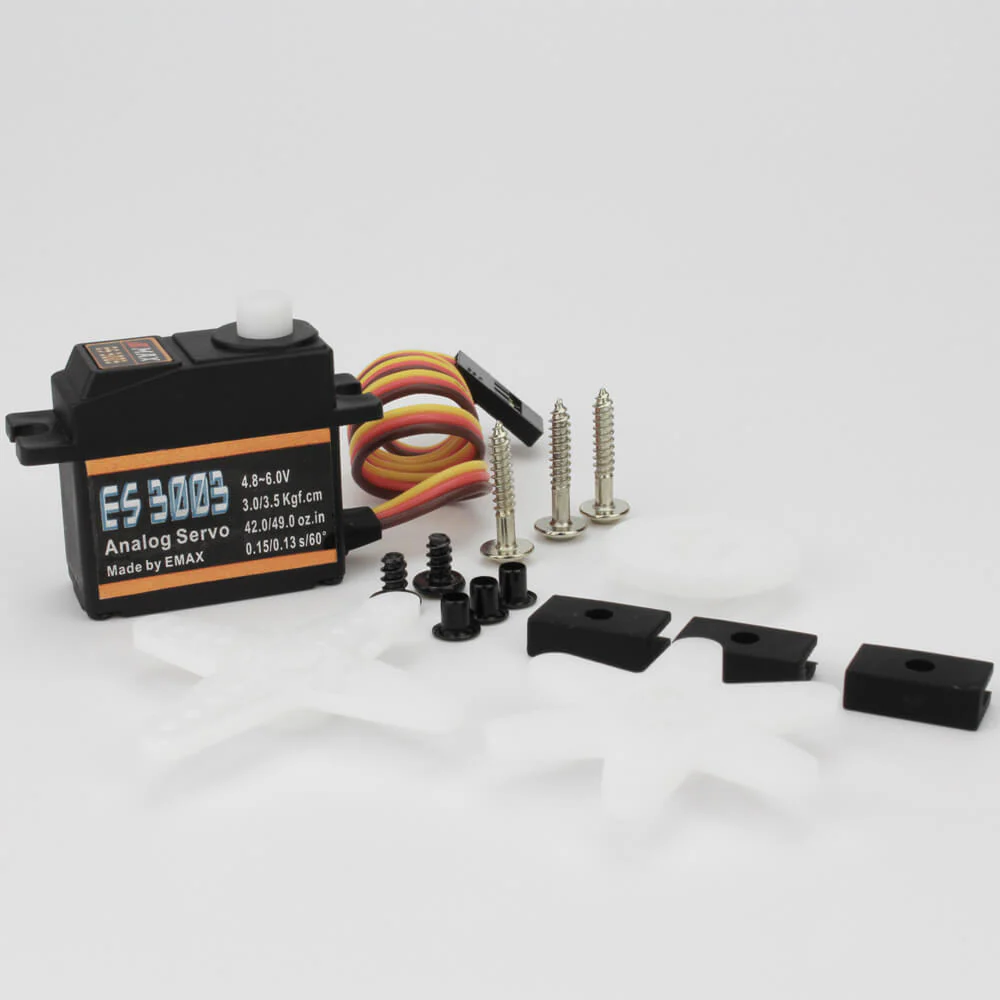

Package Included:
1x EMAX ES3003 17g Servo
